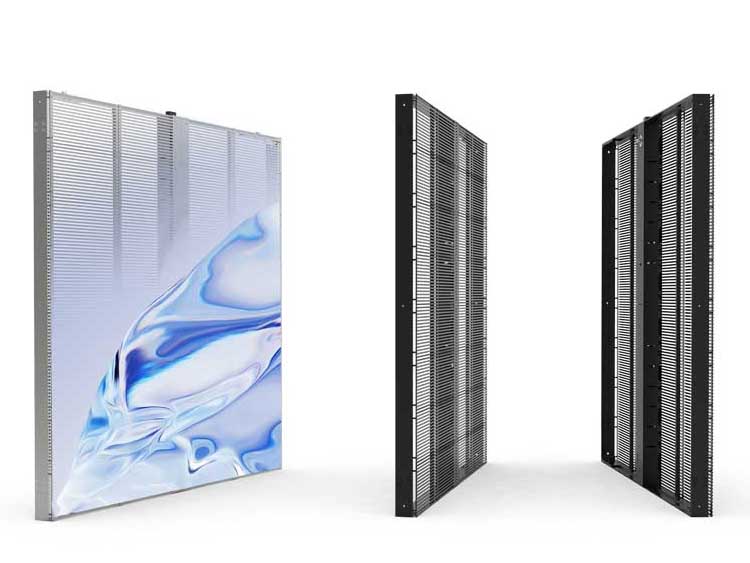

T Series -Indoor Fixed Installation Transparent Led Screen
Product description
LED transparent screen is a new type of transparent LED display, which can make the screen transparent like glass, maintain transparency and ensure the richness and display details of dynamic images. Therefore, the transparent screen interactive display device enables the user to closely view the exhibits behind the screen and to interact with the dynamic information on the transparent display.
It has the advantages of computer mobile phone dual control, data cloud, APP, Wi-Fi networking, etc. It has consistent performance, no flicker, high contrast, super wide viewing angle of 160 degrees, and bright and colorful. The transparent screen adopts a highly modular design. The hidden power supply and the receiving card are assembled quickly, which is lightweight without steel structure, and can operate as soon as it is plugged in with a light transmittance of 75%.
LED transparent screen can be easily disassembled and assembled with intelligent control mode, and the feature of novel and unique transparent display and a wider range of commercial applications can promote the development of mass media advertising market. Capable of achieving new creative and unique application effects in concerts, TV evenings and large-scale entertainment, auto shows and high-end exhibitions, as well as large-scale new product launches, it has quickly become a major trend in the LED display rental market.
Product details

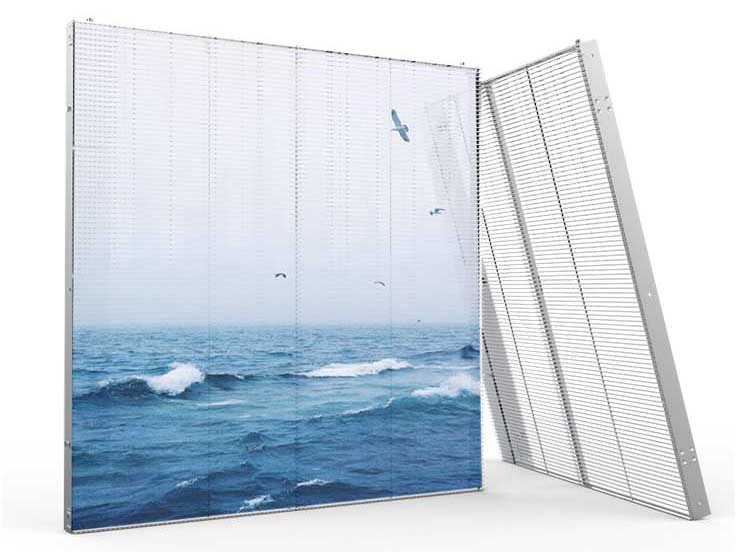

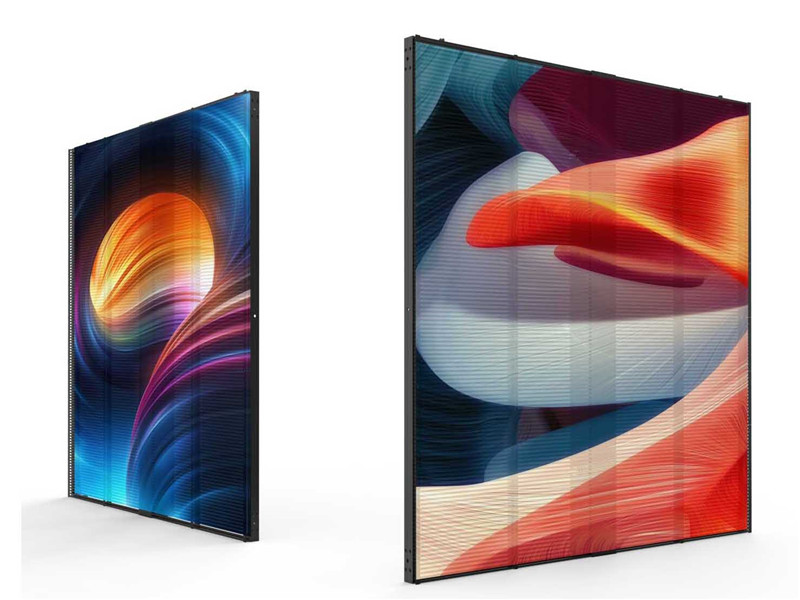

Better picture quality, high-end design
Efficient installation
1000×1000 cabinet, simple structure, efficient installation

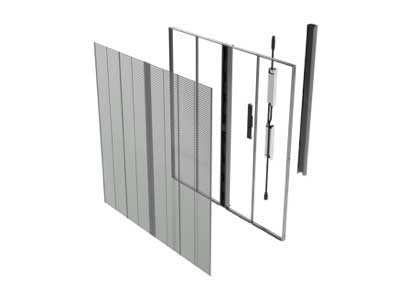

Minimalist Maintenance
Front maintenance module, snap-on power cabinet, easy and fast installation and maintenance

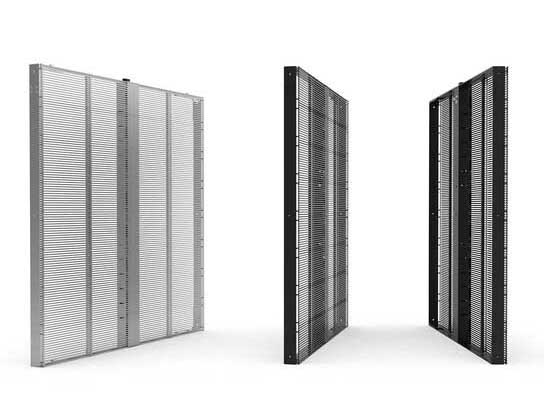

Simple and light-weight
Matte black cabinet design, power beam only 55mm wide, built-in snap connections, clean and neat.
Ultra-light and ultra-thin
As light as 10kg/ sqm, with a case as thin as 20mm
Minimalist Maintenance
Front maintenance module, snap-on power pack, installation and maintenance more easy and fast

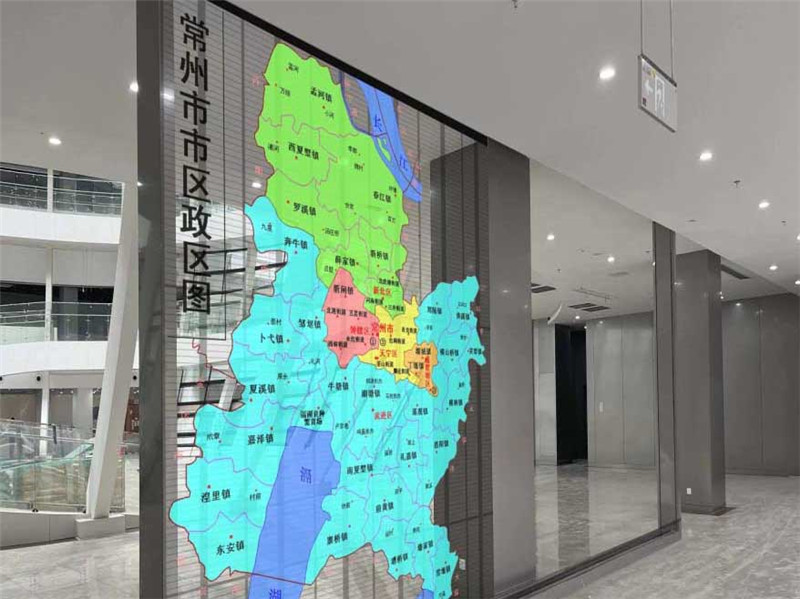

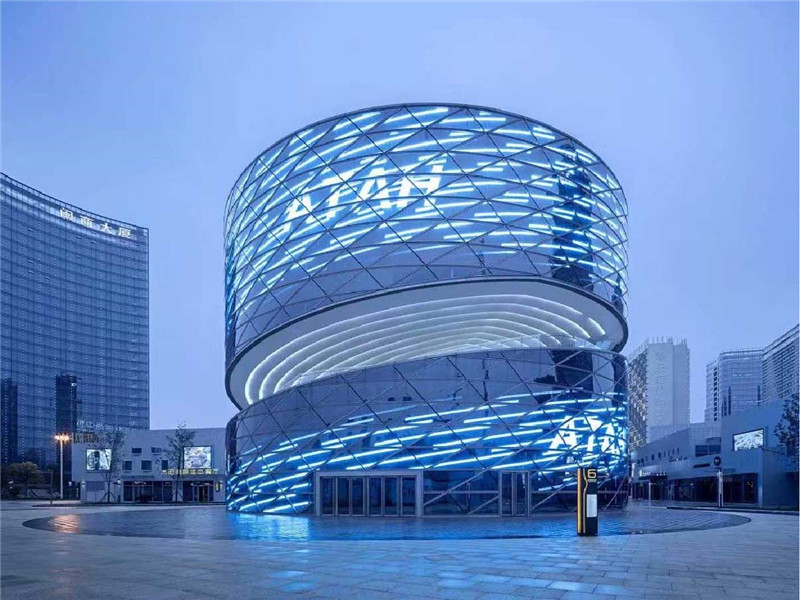

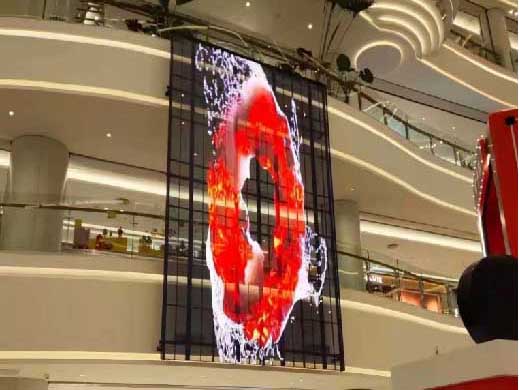

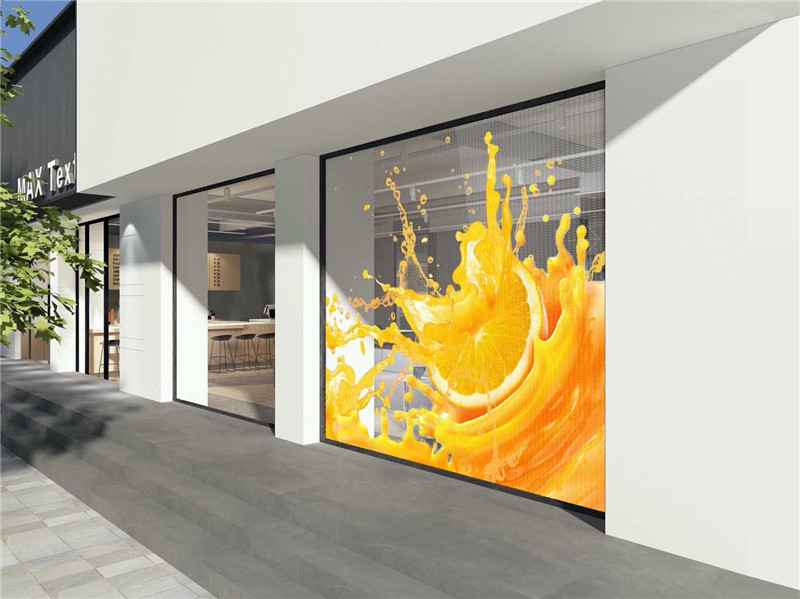

Application
Technical Parameter
| T-series Technical parameter | ||||||
| LED | P1.98 | P2.97 | P3.91 | P7.82 | P10.4 | P15.6 |
| Module Size | 500*125 | 500*125 | 500*125 | 500*125 | 500*125 | 500*125 |
| Transparency | 40% | 45% | 50% | 55% | 65% | 70% |
| Panel Weight | 6 | 6 | 6 | 6 | 6 | 6 |
| Thickness | 8 | 8 | 8 | 8 | 8 | 8 |
| Pixel Pitch | 1.98*3.91 | 2.97*6.25 | 3.91*7.82 | 7.82*7.82 | 10.4*'10.4 | 15.625*15.625 |
| Pixel Density | 131072 | 53760 | 32768 | 16384 | 9216 | 4096 |
| Brightness | 800-2000 | 800-2500 | 1500-4500 | 1500-4500 | 1500-4500 | 1500-4500 |
| Chroma Uniformity | ±0.003 | ±0.003 | ±0.003 | ±0.003 | ±0.003 | ±0.003 |
| Viewing Angle | 160 | 160 | 160 | 160 | 160 | 160 |
| Pixel Composition | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B |
| Refresh Aate | ≥1920 | ≥1920 | ≥1920 | ≥1920 | ≥1920 | ≥1920 |
| Average Power Consumption | ≤200 | ≤200 | ≤200 | ≤200 | ≤200 | ≤200 |
| Max Power Consumption | ≤600 | ≤600 | ≤600 | ≤600 | ≤600 | ≤600 |
| Operating temperature | -20℃-55℃ | -20℃-55℃ | -20℃-55℃ | -20℃-55℃ | -20℃-55℃ | -20℃-55℃ |
| Operating humidity | 10%-90% | 10%-90% | 10%-90% | 10%-90% | 10%-90% | 10%-90% |
| Driving Mode | 14S | 13S | 16/8S | 8S/4S | 2S | 2S |
